Code Upload Guide

Prerequisites:

VS Code - DOWNLOAD

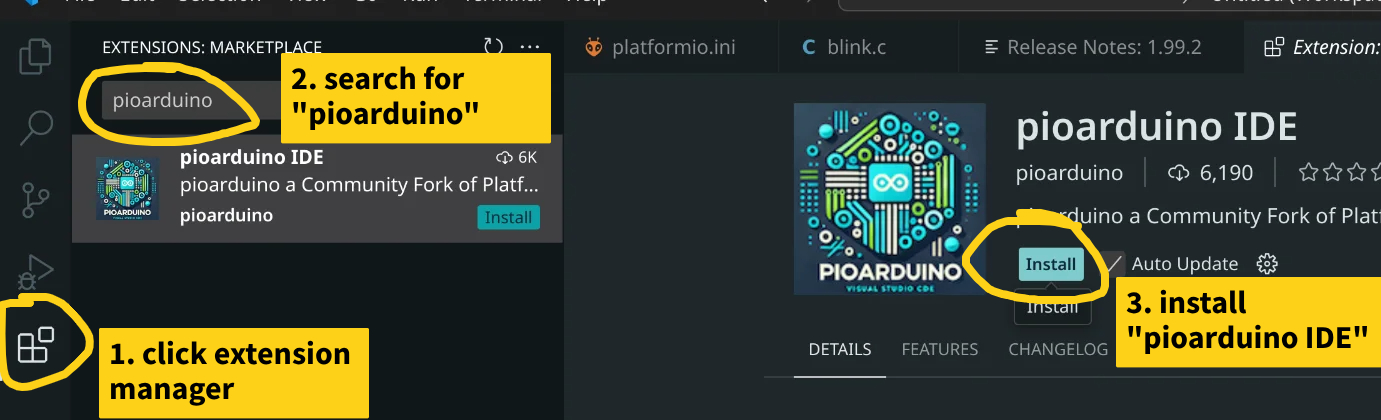

Pioarduino - install it from VS code extension manager

1) Clone repository

Clone repository from github url

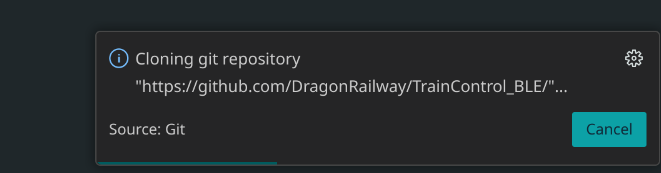

Cloning github repository

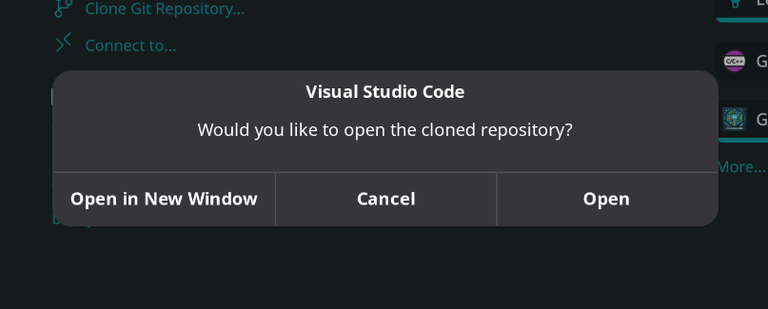

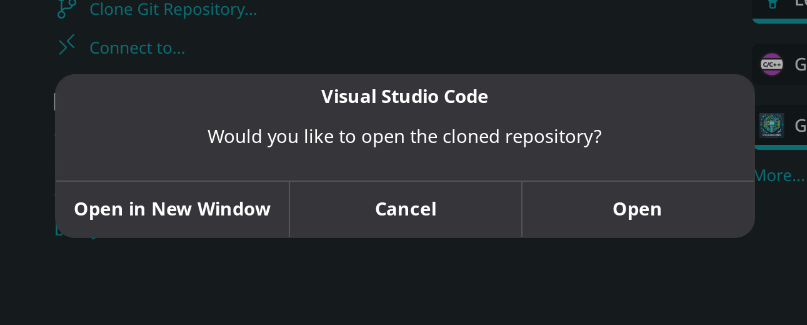

Open the Cloned Repository

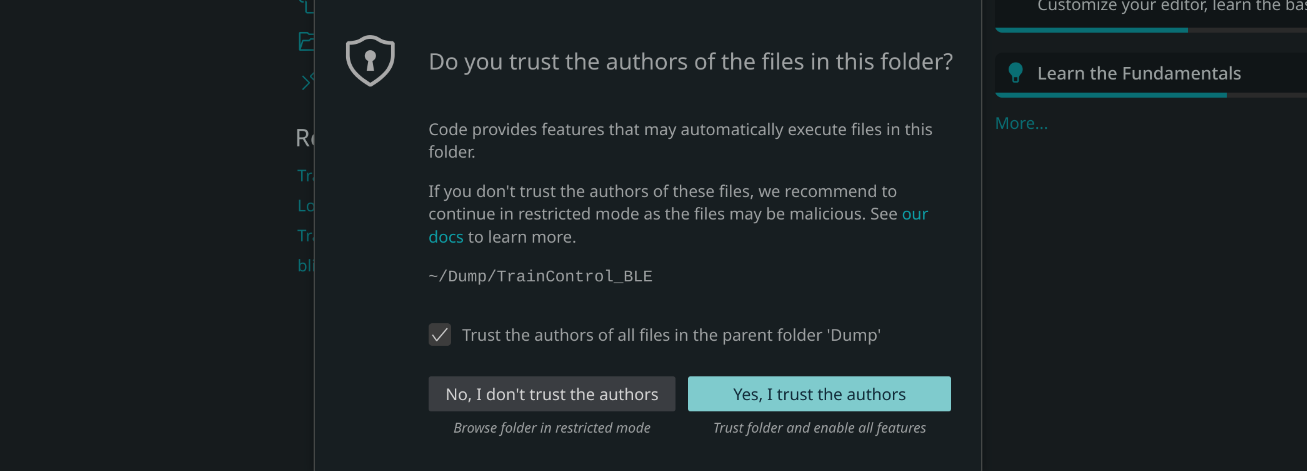

Confirm Trust the Authors

Repo URLs:

Locomotive BLE control: https://github.com/DragonRailway/TrainControl_BLE

2) Select your Control Board

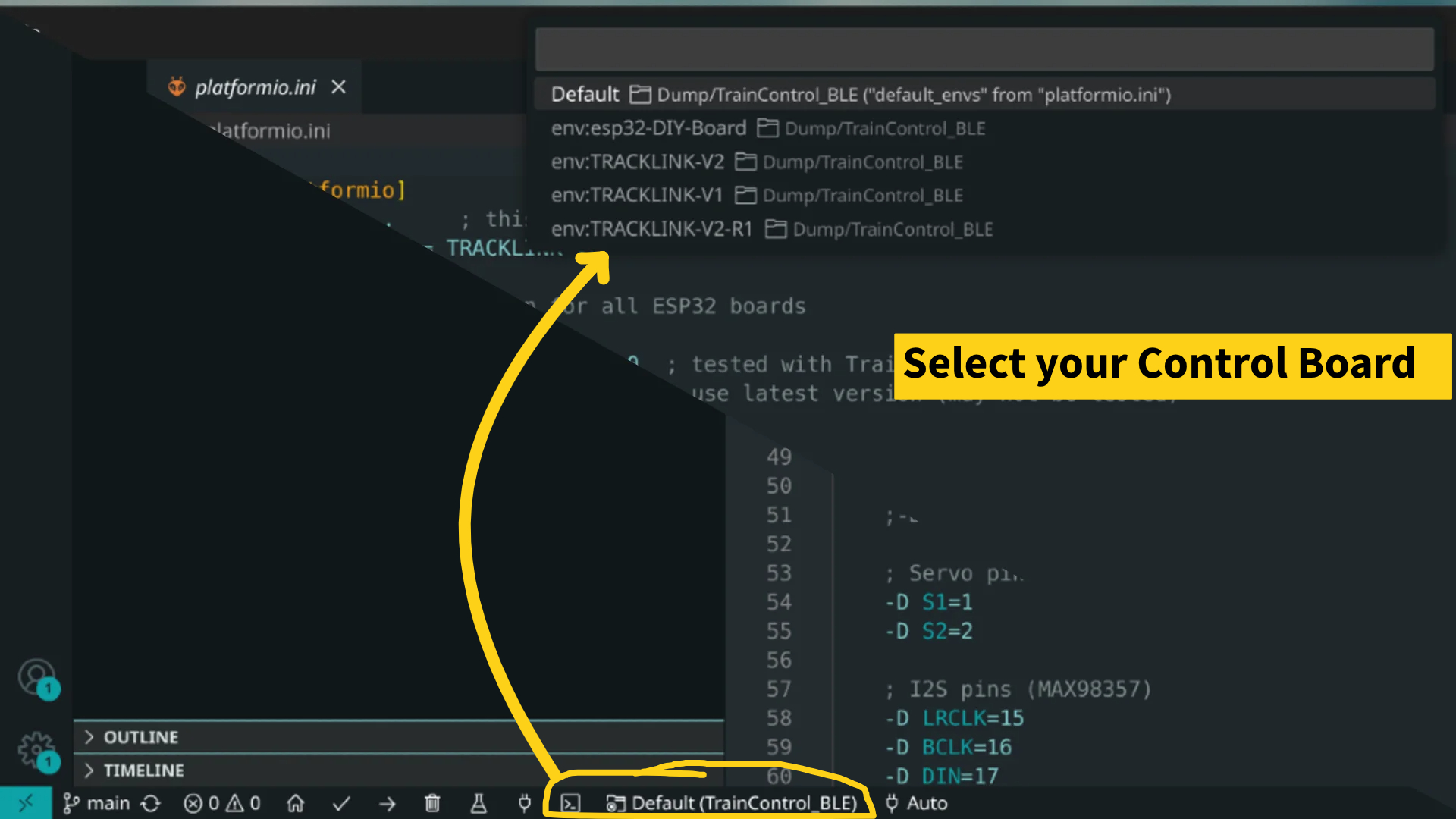

Select the project environment

If you're using our official boards, you can leave it to default.

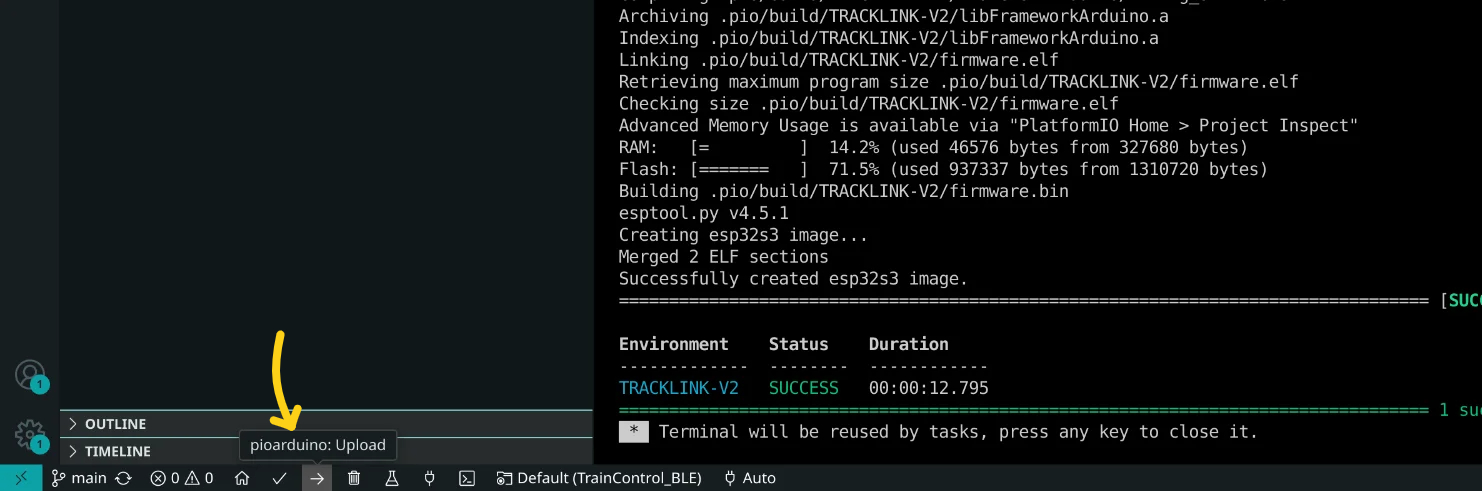

3) Connect and Upload

While uploading code for the first time, you might have to manually enter boot mode by clicking RST while holding BOOT button.

After uploading code, the RemoteXY app will need to authenticate for connection. Use password: 1234
